Receptacle Champ Female 14 Pin Centronics Connector , PCB Straight Angle
FUY57144 DDK Champ 2.16mm pitch Female Centronics 14Pin Connector PCB Mounting Straight DIP Type
This type of connector got its name from the Centronics Corporation, a manufacturer based in Nashua, New Hampshire. Back in the 1970's, Centronics made printers for use with computers. As computers and attached printers became more popular, the connector that they used became the de facto industry standard. The Centronics Corporation was purchased by Genicom (now TallyGenicom) in the 1980's, but their name lives on in this connector.
The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black and blue in color.
Quick Details
Product Category: Centronic connector
Product Line: Champ Connector
Type: Solder Connector
Number of Terminal: 14 24 36 50 64pin
PCB Mount Style:Vertical
Connector Style:Plug
Gender: Male
Insulator Color: Black or Blue
Insulator Material: PBT
Contact pin Material: Phosphor Bronze
Shield Plating: Nickel

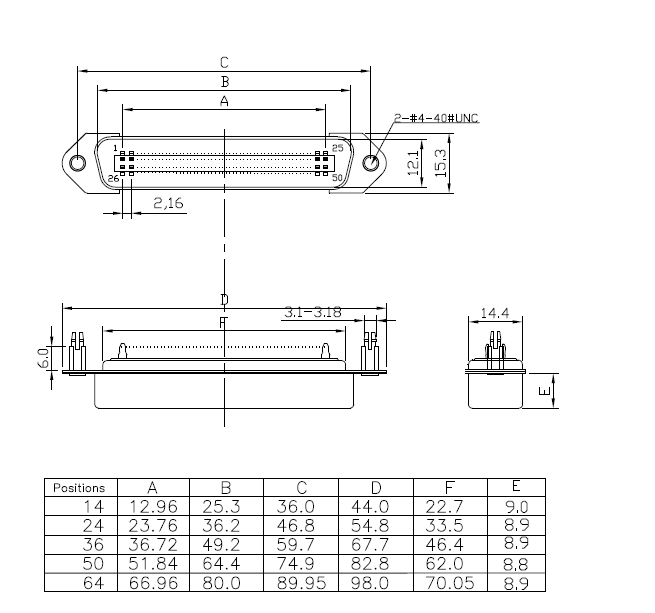

Centerline = 2.16mm [0.085in]
Application: PCB Board
Common Features
| Designed for Cable-to-cable and cable-to-PC Board applications |
| Board Application |
| Available in Plug & Socket styles |
| Terminal Option with various types |
| Connector and hood sold as complete assembly |
| Available in low profile hood style |
| Metal shell provides grounding and shielding capability |
| Mates with industry compatible connector |
Product Features
| Product Type: | Centronics PCB Mounting Connector |
| Product Line: | Champ Connector |
| Gender: | Male |
| Connector Style: | Receptacle |
| Certerline : | 2.16mm(0.85in) |
| Number of Position: | 14 24 36 50 64pin |
| Contact Plating: | Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U") |
| Terminals Type | Straight Terminals |
| Insulator Color: | Black or Blue |
| Shielded: | Yes |
| Orientation: | Straight |
| Mating connector lock: | Board Lock |
Materials
| Contact Material: | Brass |
| Insulator: | PBT (UL 94-V0) |
| Shell | Nickel Plated Steel |
Electrical Character
| Current Rating: | 5Amp |
| Withstanding Voltage: | AC 1000v r.m.s |
| Insulation Resistance: | 1000 Megohms Minimum at DC 500V |
| Contact Resistance: | 25M∩ Max Mated |
| Operation Temperature: | -55°C to +105°C |
Application
| 1, VDSL Teleccom Equipment |
| 2, Computer Peripherals |
| 3, Communication Equipment |
| 4, PCB Board |
| 5, Cable to Panel |
| 6, Cable to cable |
| 7,Computer terminal |
| 8,Telemetering |
| 9,Test Equipment |
| 10, Printer |
Advantage:
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days
