2 Rows Female DIN41612 Straight PCB 2x10P Eurocard Connector

Brand Name : FUYCONN

Model Number : FUYDIN155-220S

Certification : UL 94-V0, ROHS-certified ISO 9001:2008, ISO 14001:2004

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T or Paypal

Supply Ability : 1 million/ month

Delivery Time : 7-10 days

Packaging Details : Vacuum Tray + Carton

connector name : eurocard connector

no. of pin : 2 rows 20pin

gender : female receptacle

connector line : din41612 connector

insulation color : grey

connector type : straight pcb type

Contact Type : Vertical Easy Type

Contact Now

2 rows 20P Female DIN41612 Connector, Straight PCB 2*10P 20pin Eurocard Connector



Easy Type PCB Straight 2*10pin 20Pin Female 2rows DIN41612 Connector, 20 Pin Euro Connector w/ Vertical Lead Euro card Connector

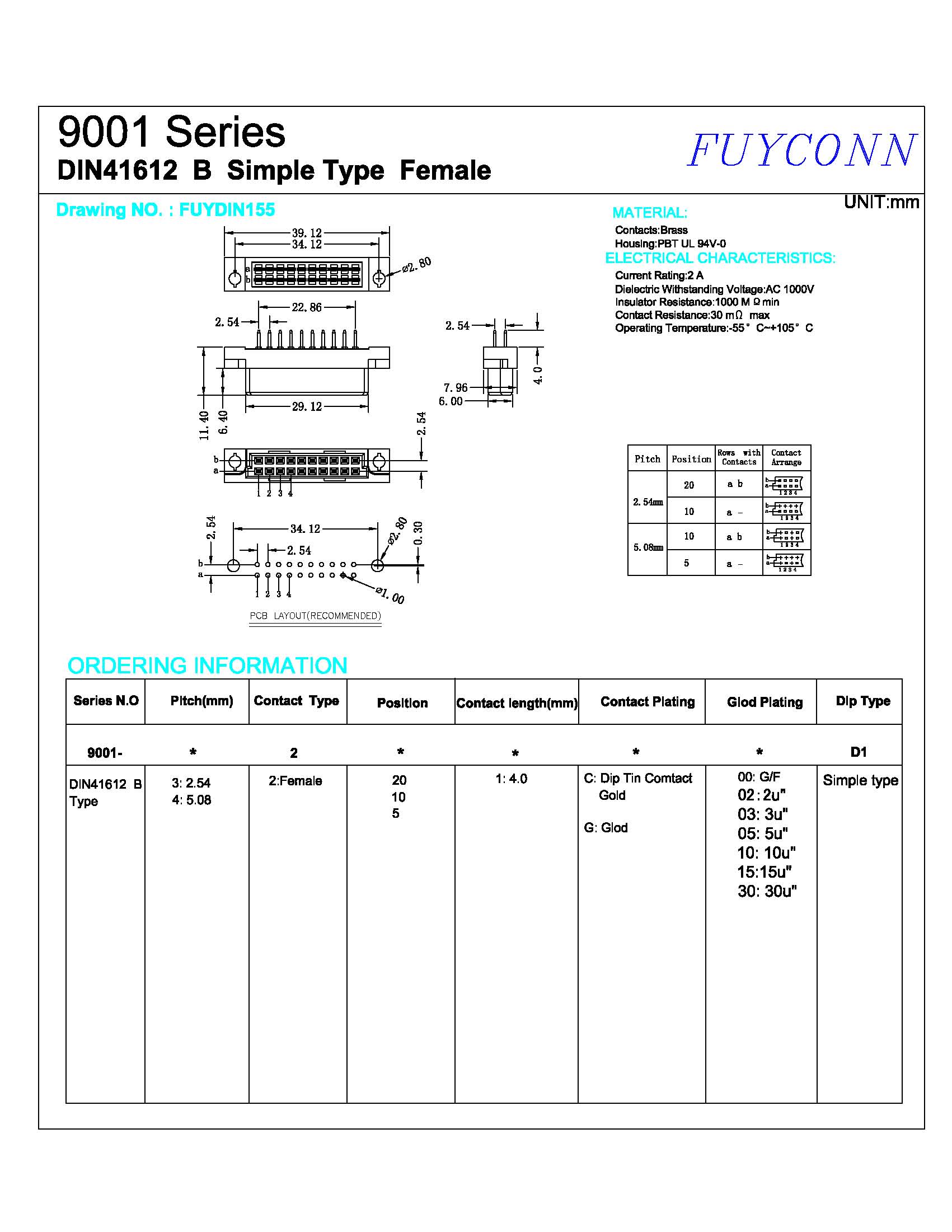

DIN 41612.pdf



DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together. The most widely known use of DIN 41612 connectors is in the VMEbus system.


The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system.DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations. 5pin 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin and 96pin are available.



Detail Description:

1. Product Line: DIN41612 Connector
2. Product Name: Eurocard connector
3. Connector Type PCB DIN 41612 Connector
4. Connector Gender: Female
5. Number of Position: 2*10P 20pin
6.Number of rows: 2 rows
7. Contact Material: Brass
8. Contact Plating: 1U", 3U", 5U", 10U", 15U",30U"
9. Insulation Material: PBT
10.Color Gray
11. Terminal Type Vertical / Straight
12. Pitch 2.54mm or 5.08mm





Electrical Specifications



Current Rating: 2Amp
Voltage rating: AC 1000v for minute
Insulator Resistance: 1000 MΩ min.at DC500V
Contact Resistance: 30mΩ max. at DC 100MA
4. Operation Temperature: -55°C to +105°C



Technology Parameters

2 Rows Female DIN41612 Straight PCB 2x10P Eurocard Connector
