180 Degree IDC Cable Assembly 32 Pairs AWG 26 Cat3 Cat5 Cable

Name: 180 Degree IDC Cable Assembly 32 Pairs AWG 26 Cat3 Cat5 Cable
Brand: FUYCONN
Price: 1 USD

Buy cheap 180 Degree IDC Cable Assembly 32 Pairs AWG 26 Cat3 Cat5 Cable product

Brand Name : FUYCONN

Certification : ISO9001 2008, ISO14001 2004, UL

Place of Origin : Dongguan

MOQ : 200pcs

Payment Terms : T/T

Delivery Time : 2-4 weeks

Packaging Details : PE Bag + Carton

Price : Negotiable

Product Type : Cable assembled with IDC Connector

Gender : Female or Male

contact no. : 50 pin or 64 pin

Certerline : 2.16mm(0.85in)

Contact Plating : Gold Flash 1U", 3U", 5U" ,10U", 15U", 30U"

Orientation : 90 or 180 Degree Cable Exit

Cable Pairs : 25 Pairs

Cable Length : Depend on request

Contact Now

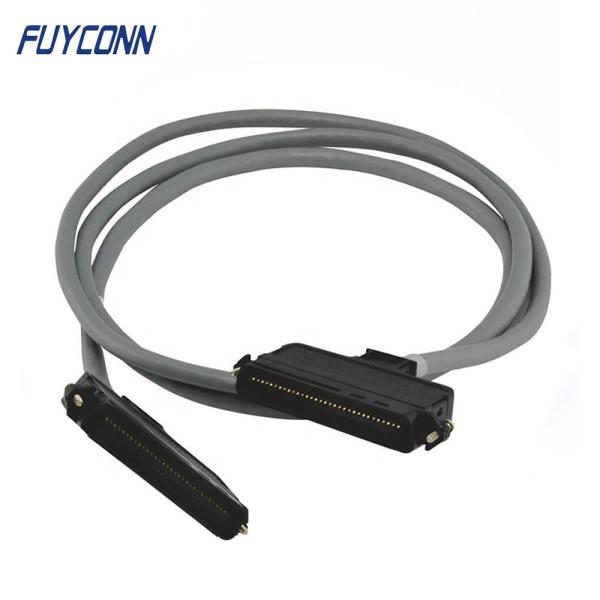

180 Degree IDC Cable Assembly 32 Pairs AWG 26 Cat3 Cat5 Cable

50 64 Pin Male/Female to Female/Male Telco RJ21 Cable connector, Cat3 25pr 32pr Telco PBX Cable With AMP TYCO Champ connector

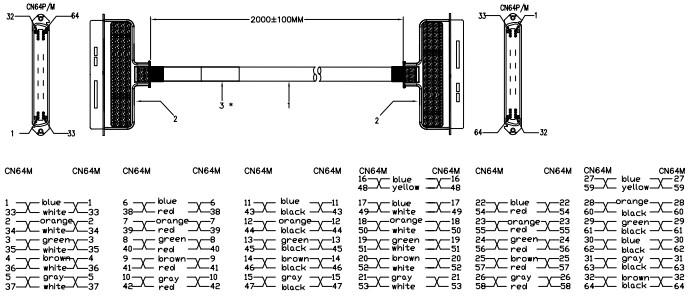

Type 1: 32 pairs AWG 24 or 26 Cable both sides assembled with 32 pairs 64 pin Male IDC Plug connectors

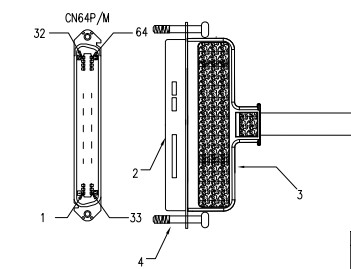

1) 32 pairs 64 pin male IDC Plug connector 180 degree plastic cover

2) Assembled 32 pairs AWG 26 Cable

3) 2 sides with connector

4) Cable length : depend on request

180 Degree IDC Cable Assembly 32 Pairs AWG 26 Cat3 Cat5 Cable

Type 2: 25 pairs AWG 24 26 Cable both sides assembled with 25 pairs 50pin Male IDC Plug connectors

1) 25 pairs 50 pin male IDC Plug connector 180 degree plastic cover

2) Assembled 25 pairs AWG 26 Cable

3) 2 side with connector

4) Cable length : depend on request

180 Degree IDC Cable Assembly 32 Pairs AWG 26 Cat3 Cat5 Cable

Type 3: 32 pairs AWG 24 or 26 Cable one side assembled with 24 pairs 50 pin Male IDC Plug connector one side open

1) 32 pairs 64 pin male IDC Plug connector 180 degree plastic cover

2) Assembled 32 pairs AWG 24 or 26 Cable

3) one side with connector, one side open

4) Cable length : depend on request

180 Degree IDC Cable Assembly 32 Pairs AWG 26 Cat3 Cat5 Cable

Wire List

Pin	Wire Color	Line	Pin	Wire Color	Line	Pin	Wire Color	Line	Pin	Wire Color	Line
1	White	1	11	Black	11	17	White	17	27	Black	27
33	Blue	1	43	Blue	11	49	Blue	17	59	Blue	27
2	White	2	12	Black	12	18	White	18	28	Black	28
34	Orange	2	44	Orange	12	50	Orange	18	60	Orange	28
3	White	3	13	Black	13	19	White	19	29	Black	29
35	Green	3	45	Green	13	51	Green	19	61	Green	29
4	White	4	14	Black	14	20	White	20	30	Black	30
36	Brown	4	46	Brown	14	52	Brown	20	62	Brown	30
5	White	5	15	Black	15	21	White	21	31	Black	31
37	Gray	5	47	Gray	15	53	Gray	21	63	Gray	31
6	Red	6	16	Yellow	16	22	Red	22	32	Yellow	32
38	Blue	6	48	Blue	16	54	Blue	22	64	Blue	32
7	Red	7				23	Red	23
39	Orange	7				55	Orange	23
8	Red	8				24	Red	24
40	Green	8				56	Green	24
9	Red	9				25	Red	25
41	Brown	9				57	Brown	25
10	Red	10				26	Red	26
42	Gray	10				58	Gray	26

Connector with Assembled Cable.pdf
